800GBASE-SR8-LU OSFP PAM4

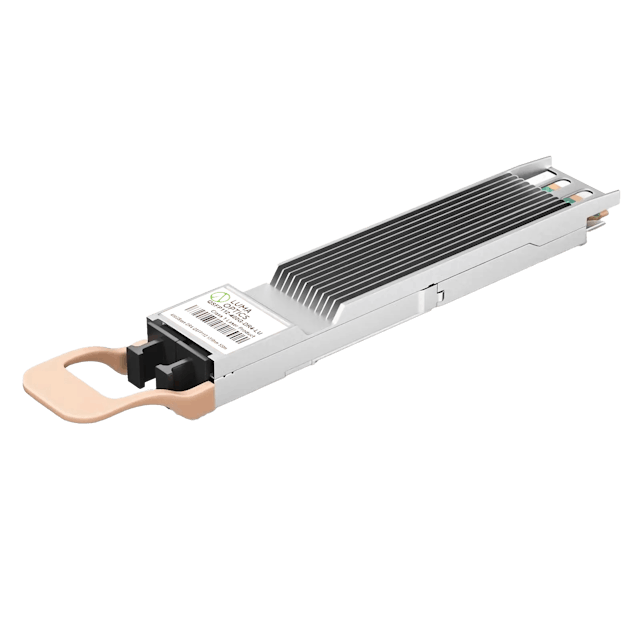

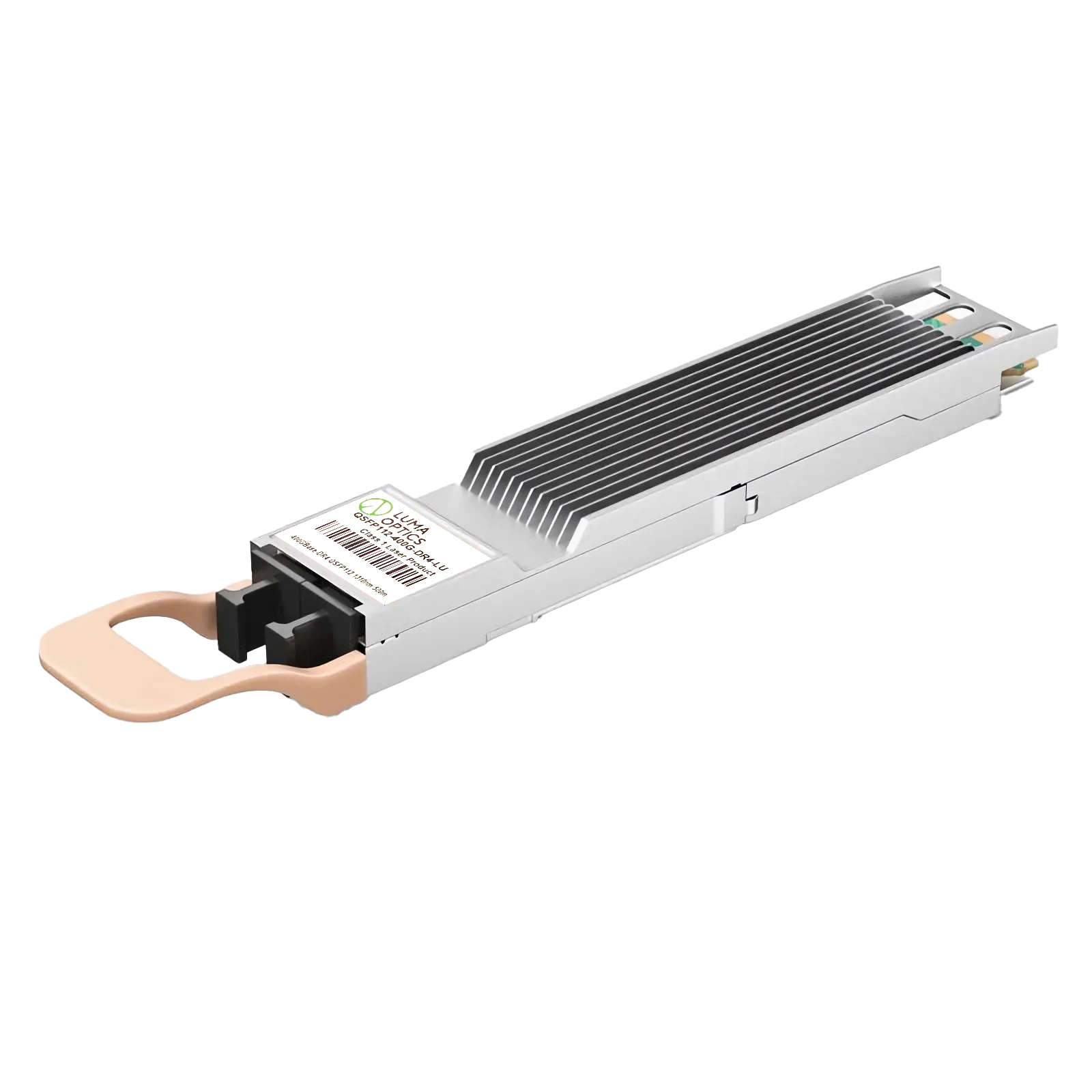

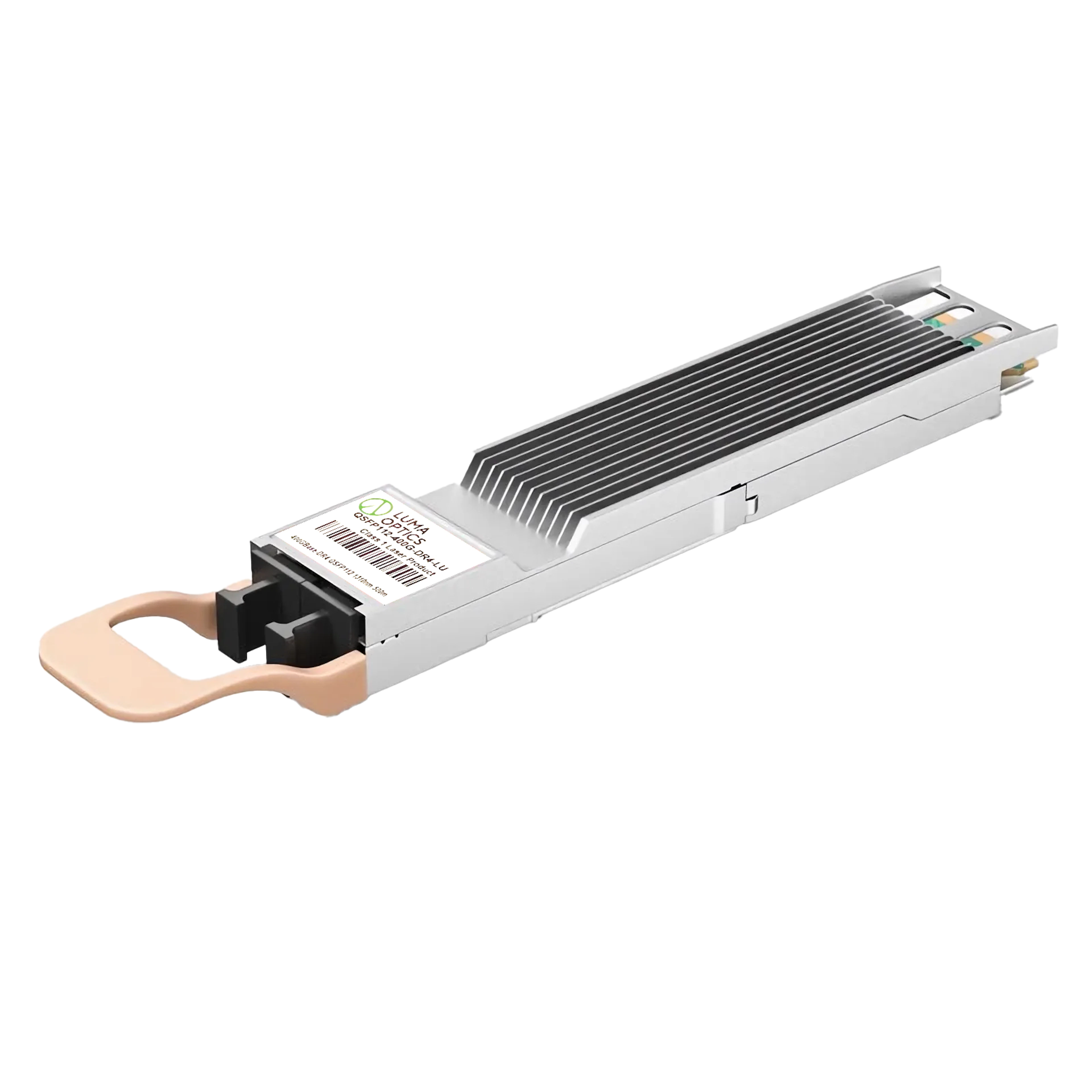

800GBASE 2xSR4/SR8 OSFP Finned Top PAM4 850nm 50m DOM Dual MPO-12/APC MMF | Optical Transceiver Module
The 800GBASE-SR8 OSFP optical transceiver module is designed for 800GBASE Ethernet throughput up to 50m link lengths over OM4 multimode fiber (MMF) using a wavelength of 850nm via dual MTP/MPO-12 APC connectors. This transceiver is compliant with IEEE 802.3ck, OSFP MSA standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. The twin-port OSFP finned-top transceiver is used in Ethernet air-cooled switches. Featured with low latency, low power, and reliability, it can link upward in spine-leaf architectures for switch-to-switch applications, downward for top-of-rack switch links to Ethernet network adapters, and/or to BlueField-3 DPUs in compute servers and storage subsystems. It is the ideal solution for HPC computing, AI, and cloud data centers.
| data rate | 850Gbps (8x 106.25Gbps) |
| Center wavelenght | 850nm |
| Cable distance | 30m@OM3/50m@OM4 |
| power consumption | 16W |
| connector | Dual MTP/MPO-12 APC |
| Transmitter Type | VCSEL |
| Receiver Type | PIN |
| case temperature | 0 to 70°C (32 to 158°F) |
| modulation | 8 x 100G PAM4 |
| Tx Power | -4.6-4dBm |
| Rx Power | -6.4dBm |
| protocol | OSFP MSA, CMIS 5.0, IEEE 802.3db, IEEE 802.3ck |
| media | MMF |
| Extinction Ration | >2.5dB |
| fec | NO |
| package | Twin-port OSFP Finned Top |
| Vendor Name | Luma Optics |
| warranty | Lifetime |
| Typical application | 800G to 800G Links 800G to 2 x 400G Links 800G to 4 x 200G Links |
features
- Built-in Marvell 6nm DSP Chip
- Max. Power Consumption 16W
- Parameter Tests for Superior Performance
- Quality, and Reliability
- Support 2x 400G or 4x 200G Breakout for Higher Port Density
- High-speed Connectivity Compliant to IEEE 802.3ck
- Hot Pluggable OSFP MSA Compliant
