800GBASE-DR8-LU QSFP-DD PAM4

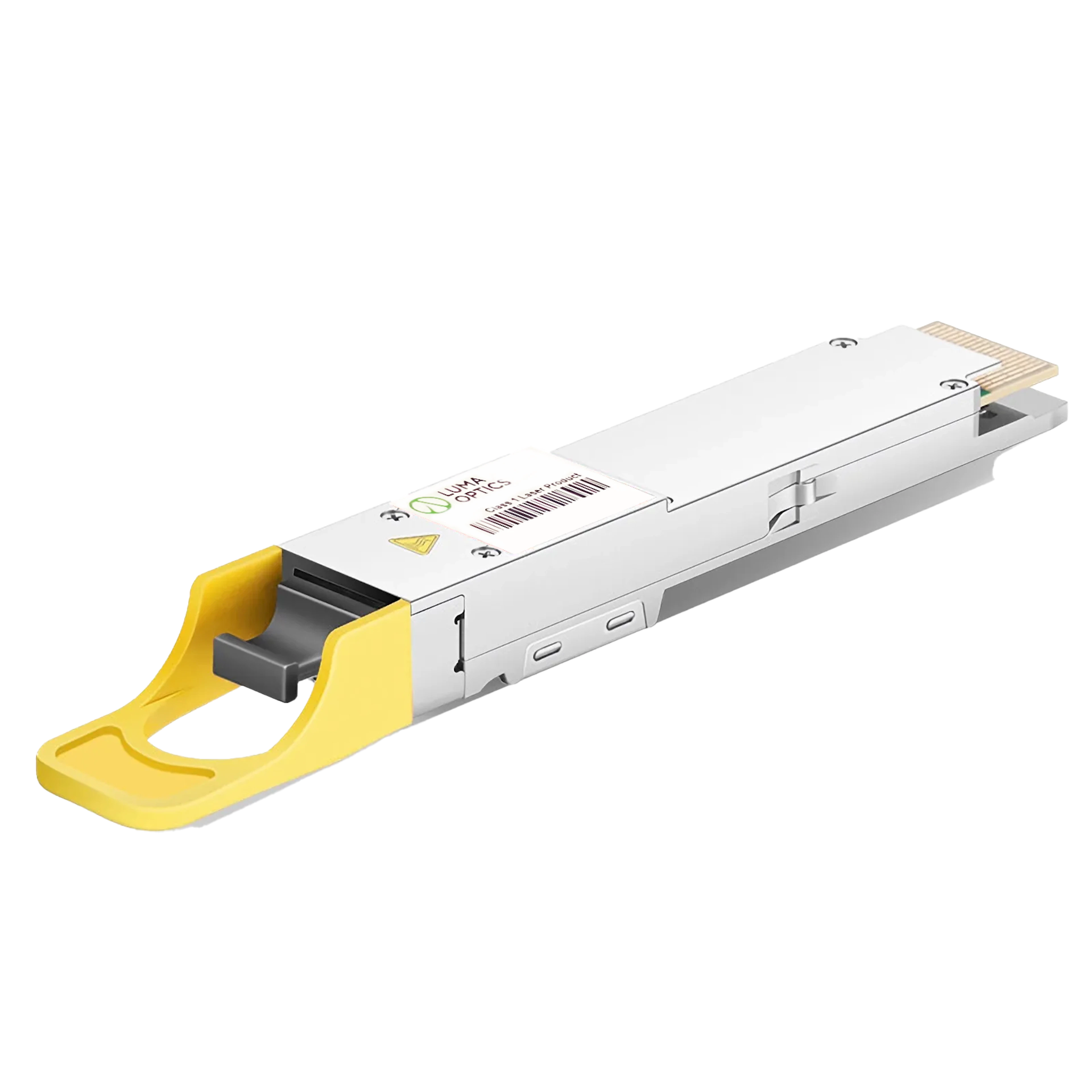

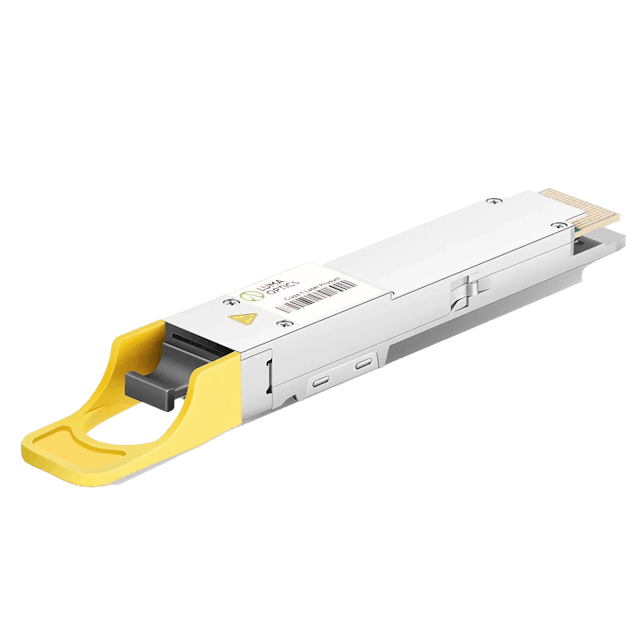

800GBASE-DR8 QSFP-DD PAM4 1310nm 500m DOM MPO-16/APC SMF | Optical Transceiver Module | Breakout to 2 x 400G-DR4 and 8 x 100G-DR
This 800GBASE-DR8 QSFP-DD optical transceiver module is designed for 800GBASE Ethernet throughput up to 500m link lengths over OS2 single-mode fiber (SMF) using a wavelength of 1310nm via MTP/MPO-16 APC connectors. This transceiver is compliant with IEEE P802.3ck, IEEE 802.3cu, and QSFP-DD MSA standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It supports 2x 400G DR4 and 8x 100G DR breakout applications. Featuring low latency, low power, and reliability, the product is suitable for 800G Ethernet, Data Center, high-performance computing networks, enterprise core and distribution layers, and service provider applications.
| data rate | 850Gbps (8x 106.25Gbps) |
| Center wavelenght | 1310nm |
| Cable distance | 500m |
| power consumption | 16.5W |
| connector | MTP/MPO-16 APC |
| Transmitter Type | EML |
| Receiver Type | PIN |
| case temperature | 0 to 70°C (32 to 158°F) |
| modulation | PAM4 |
| Tx Power | -2.9 - 4dBm |
| Rx Power | -5.9 - 4dBm |
| protocol | OSFP MSA 5.0, CMIS 5.1, PAM4, IEEE802.3ck and IEEE 802.3df |
| media | SMF |
| Extinction Ration | >3.5db |
| fec | NO |
| package | QSFP-DD |
| Packaging Technology COB | |
| Vendor Name | Luma Optics |
| warranty | Lifetime |
| Typical application | 800G to 800G Links 800G to 2 x 400G Links 800G to 8 x 100G Links |
features
- Built-in Broadcom 7nm DSP Chip
- Max. Power Consumption 16.5W
- High-speed Connectivity Compliant to IEEE P802.3ck and IEEE 802.3cu
- Support 2x 400G or 8x 100G Breakout for Higher Port Density
- Connect New 800G Sites to Legacy 400G Sites via 2x 400G Breakout
- 8x 106.25G PAM4 Retimed 8x 100GAUI-1 C2M Electrical Interface
