OSFP DR8L
800GBASE-DR8L-LU OSFP PAM4
800GBASE 2xDR4/DR8 OSFP Finned Top PAM4 1310nm 100m DOM Dual MPO-12/APC SMF | Optical Transceiver Module

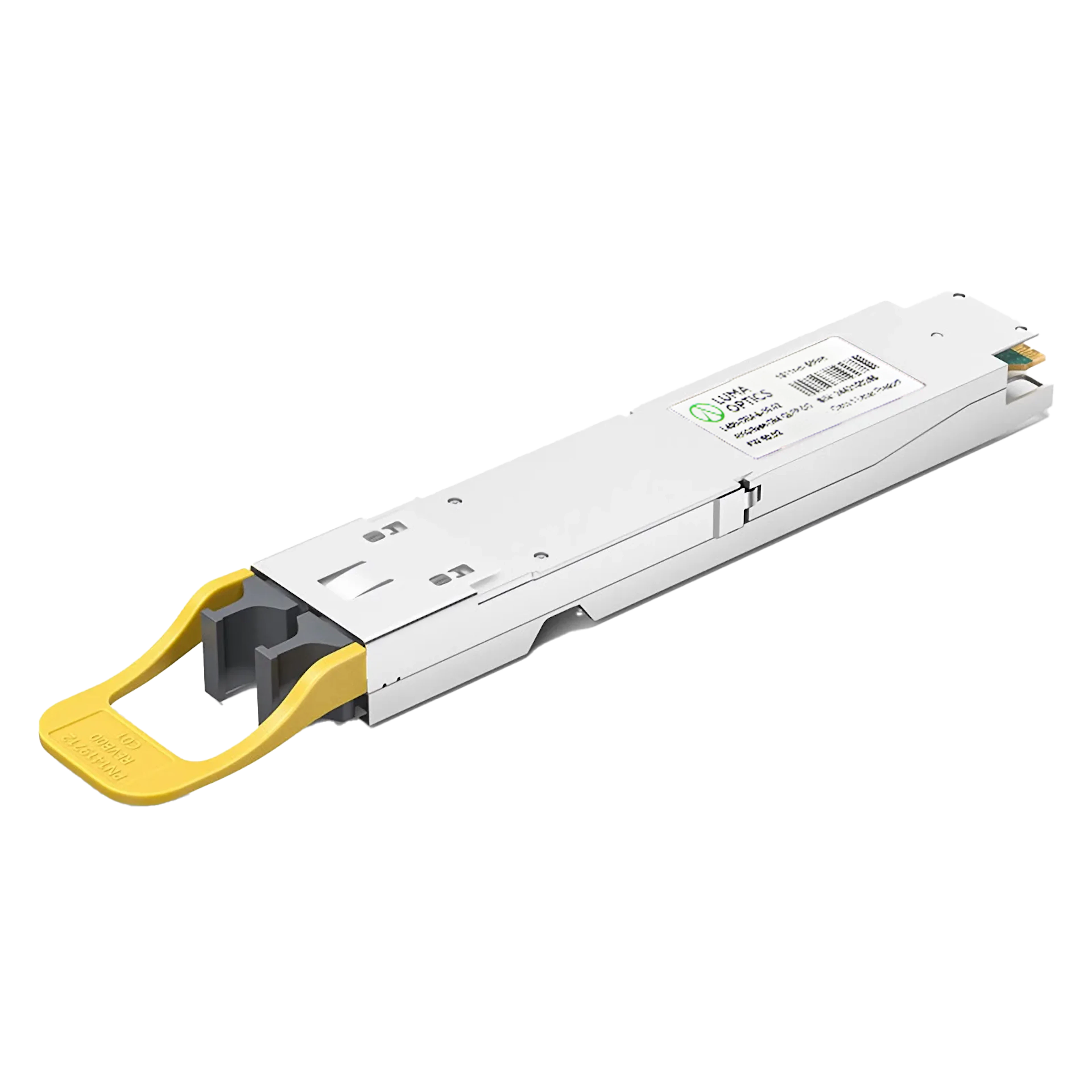

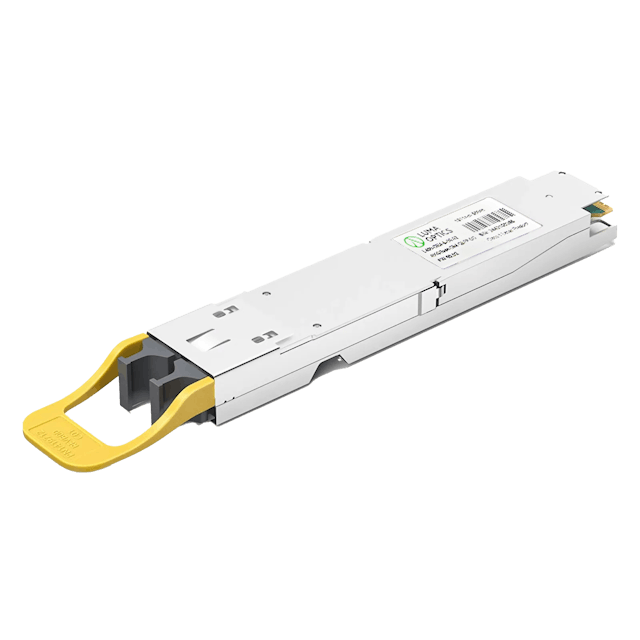

The 800GBASE-DR8L OSFP optical transceiver module is designed for 800GBASE Ethernet throughput up to 100m link lengths over OS2 single-mode fiber (SMF) using a wavelength of 1310nm via dual MTP/MPO-12 APC connectors. This transceiver is compliant with IEEE 802.3ck, IEEE 802.3cu and OSFP MSA standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. The twin-port OSFP finned-top transceiver is used in Ethernet air-cooled switches. Featuring low latency, low power, and reliability, it can link upward in spine-leaf architectures for switch-to-switch applications, downward for top-of-rack switch links to Ethernet network adapters, and/or to BlueField-3 DPUs in compute servers and storage subsystems. It is the ideal solution for HPC computing, AI, and cloud data centers.
| data rate | 850Gbps (8x 106.25Gbps) |
| Center wavelenght | 1310nm |
| Cable distance | 100m |
| power consumption | 17W |
| connector | Dual MTP/MPO-12 APC |
| Transmitter Type | EML |
| Receiver Type | PIN |
| case temperature | 0 to 70°C (32 to 158°F) |
| modulation | 8 x 100G PAM4 |
| Tx Power | -2.9~4.0dBm |
| Rx Power | -5.9dBm |
| protocol | IEE802.3ck, IEEE 802.3cu, OSFP MSA |
| media | SMF |
| Extinction Ration | >3.5db |
| fec | NO |
| package | Twin-port OSFP Finned Top |
| Packaging Technology COB | |
| Vendor Name | Luma Optics |
| warranty | Lifetime |
| Typical application | 800G to 800G Links 800G to 2 x 400G Links 800G to 4 x 200G Links |
features
- Max. Power Consumption 17W
- Hot Pluggable OSFP MSA Compliant
- High-speed Connectivity Compliant to IEEE 802.3ck
- Digital diagnostic functions
- Support 2x 400G or 4x 200G Breakout for Higher Port Density
