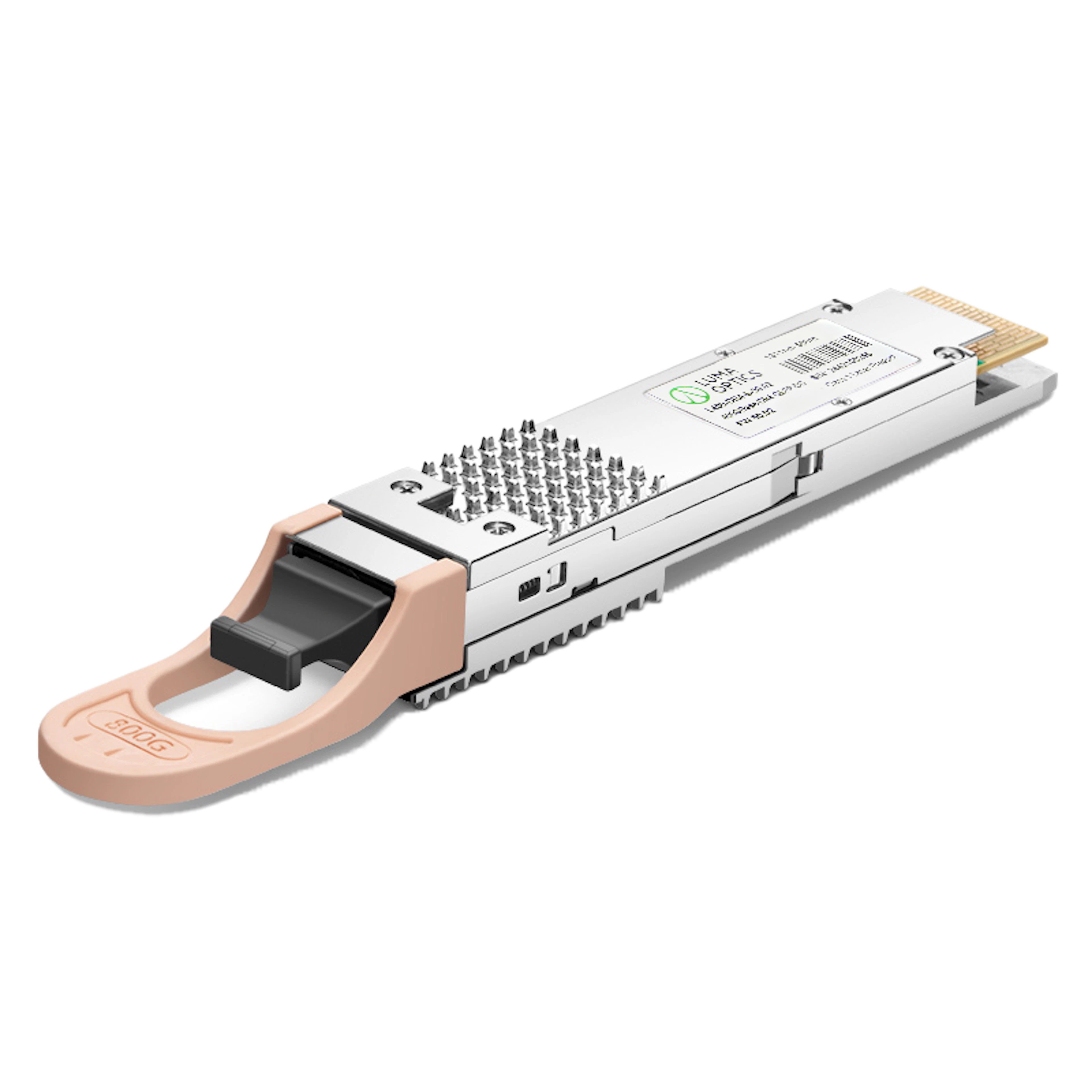

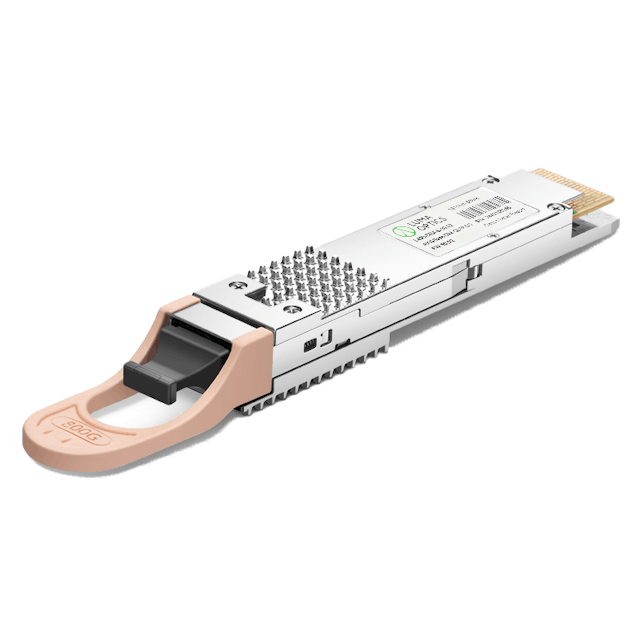

QSFP-DD SR8
800GBASE-SR8-LU QSFP-DD PAM4
850nm 50m DOM MPO-16/APC MMF | Optical Transceiver Module
Compliance:
The 800GBASE-SR8 QSFP-DD optical transceiver module is designed for 800GBASE Ethernet throughput up to 50m link lengths over OM4 multimode fiber (MMF) using a wavelength of 850nm via MTP/MPO-16 APC connectors. This transceiver is compliant with IEEE 802.3ck, CMIS 5.0 and QSFP-DD MSA standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It supports 2x 400G SR4 breakout applications. Featured with low latency, low power, and reliability, the product is suitable for 800G Ethernet, Data Center, high-performance computing networks, enterprise core and distribution layers, and service provider applications.
| data rate | 850Gbps (8x 106.25Gbps) |
| Center wavelenght | 850nm |
| Cable distance | 30m@OM3/50m@OM4 |
| power consumption | 13W |
| connector | MTP/MPO-16 APC |
| Transmitter Type | VCSEL |
| Receiver Type | PIN |
| case temperature | 0 to 70°C (32 to 158°F) |
| modulation | 8 x 100G PAM4 |
| Tx Power | -4.6-4dBm |
| Rx Power | -6.4dBm |
| protocol | QSFP-DD MSA Hardware Rev 7.0, CMIS Rev 5.0, IEEE 802.3df-2024, IEEE 802.3df-2024 |
| media | MMF |
| Extinction Ration | >2.5dB |
| fec | NO |
| package | QSFP-DD |
| Packaging Technology COB | |
| Vendor Name | Luma Optics |
| warranty | Lifetime |
| Typical application | 1 x 800G to 800G |
features
- Built-in Broadcom 7nm DSP Chip
- Max. Power Consumption 13W
- Parameter Tests for Superior Performance
- Quality, and Reliability
- Support 850Gb/s Aggregate Bit Rate
- High-speed Connectivity Compliant to IEEE 802.3ck
- Hot Pluggable QSFP-DD MSA Compliant
