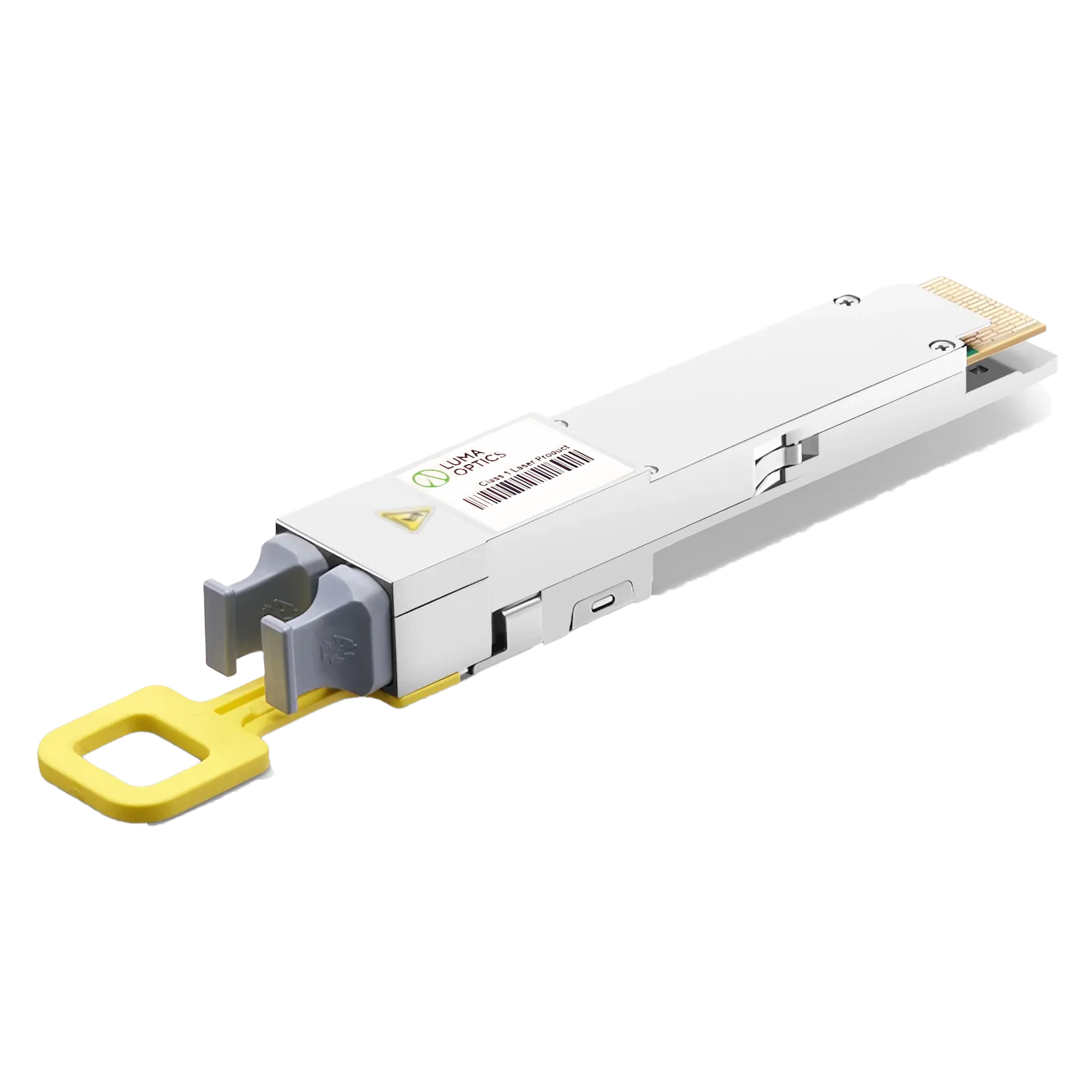

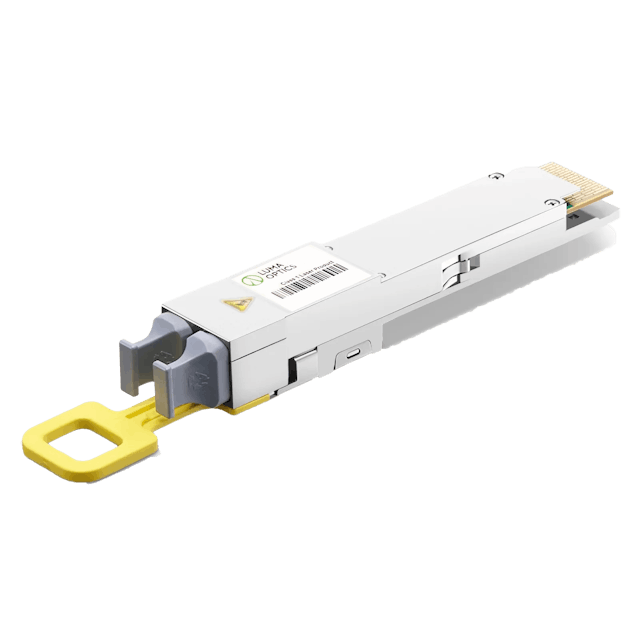

800GBASE-XDR8-LU QSFP-DD PAM4
800GBASE 2 x 400G-XDR4/XDR8 QSFP-DD PAM4 1310nm 2km DOM Dual MPO-12/APC SMF | Optical Transceiver Module
The 800GBASE-XDR8 QSFP-DD optical transceiver module is designed for 800GBASE Ethernet throughput up to 2km link lengths over OS2 single-mode fiber (SMF) using a wavelength of 1310nm via dual MTP/MPO-12 APC connectors. This transceiver is compliant with IEEE P802.3ck, IEEE 802.3cu, QSFP-DD MSA standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. This module has 2x MPO-12 connectors, supports 2x 400G XDR4 and 8x 100G FR breakout applications. It can also be configured with a single port (4x 100G PAM4) for 400G applications. Featured with low latency, low power, and reliability, the product is suitable for 800G Ethernet, Data Center, high-performance computing networks, enterprise core and distribution layers, and service provider applications.
| data rate | 850Gbps (8x 106.25Gbps) |
| Center wavelenght | 1310nm |
| Cable distance | 2Km |
| power consumption | 18W |
| connector | Dual MTP/MPO-12 APC |
| Transmitter Type | EML |
| Receiver Type | PIN |
| case temperature | 0 to 70°C (32 to 158°F) |
| modulation | 8 x 100G PAM4 |
| Tx Power | -3.1~4.0dBm |
| Rx Power | -7.1dBm |
| protocol | QSFP-DD MSA HW Rev 7.0, CMIS Rev 5.0, IEEE802.3cu-2021, IEEE802.3ck-2022 |
| media | SMF |
| Extinction Ration | >3.5db |
| fec | YES |
| package | QSFP-DD |
| Packaging Technology COB | |
| Vendor Name | Luma Optics |
| warranty | Lifetime |
| Typical application | 800G to 800G Links 800G to 2 x 400G Links 800G to 8 x 100G Links 400G to 400G Links |
features
- Built-in Broadcom 7nm DSP Chip
- Max. Power Consumption 18W
- Supports the Use of a Single Port for 1x 400G Applications
- High-speed Connectivity Compliant to IEEE P802.3ck and IEEE 802.3cu
- 8x 106.25G PAM4 Retimed 8x 100GAUI-1 C2M Electrical Interface
