QSFP LR4

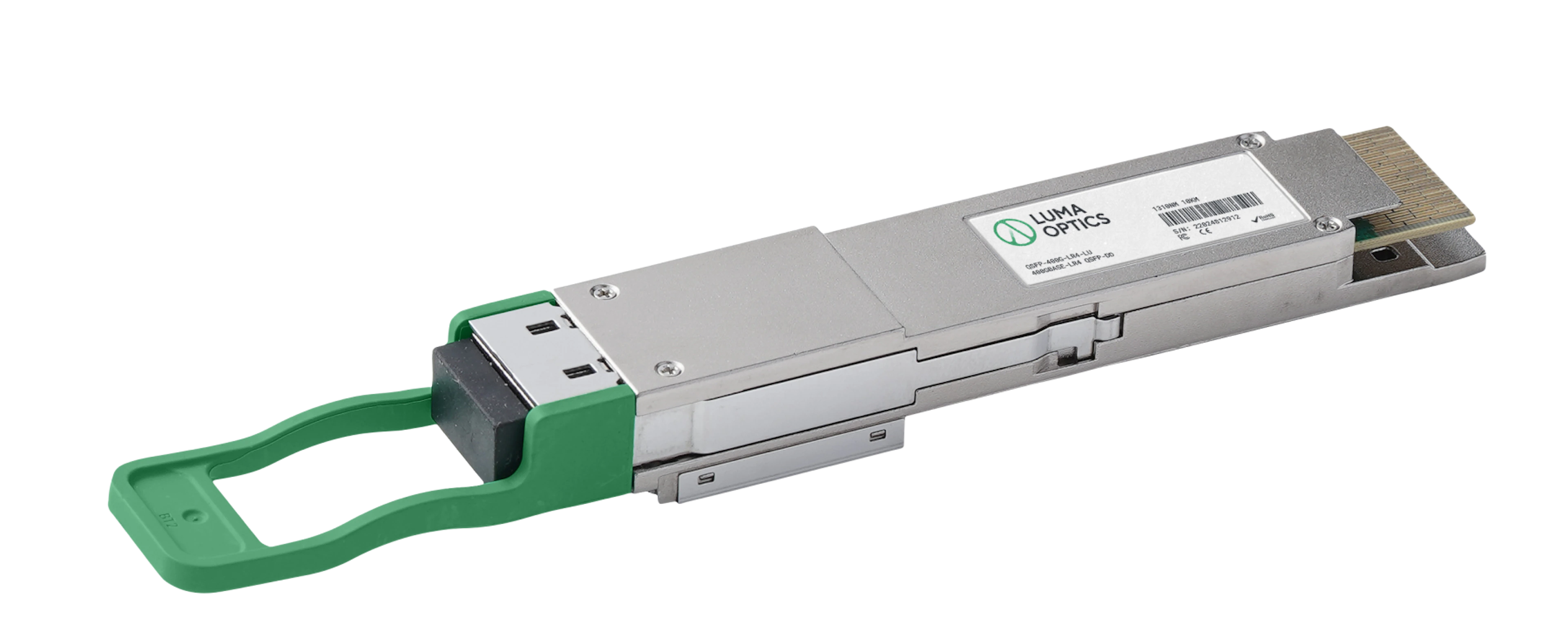

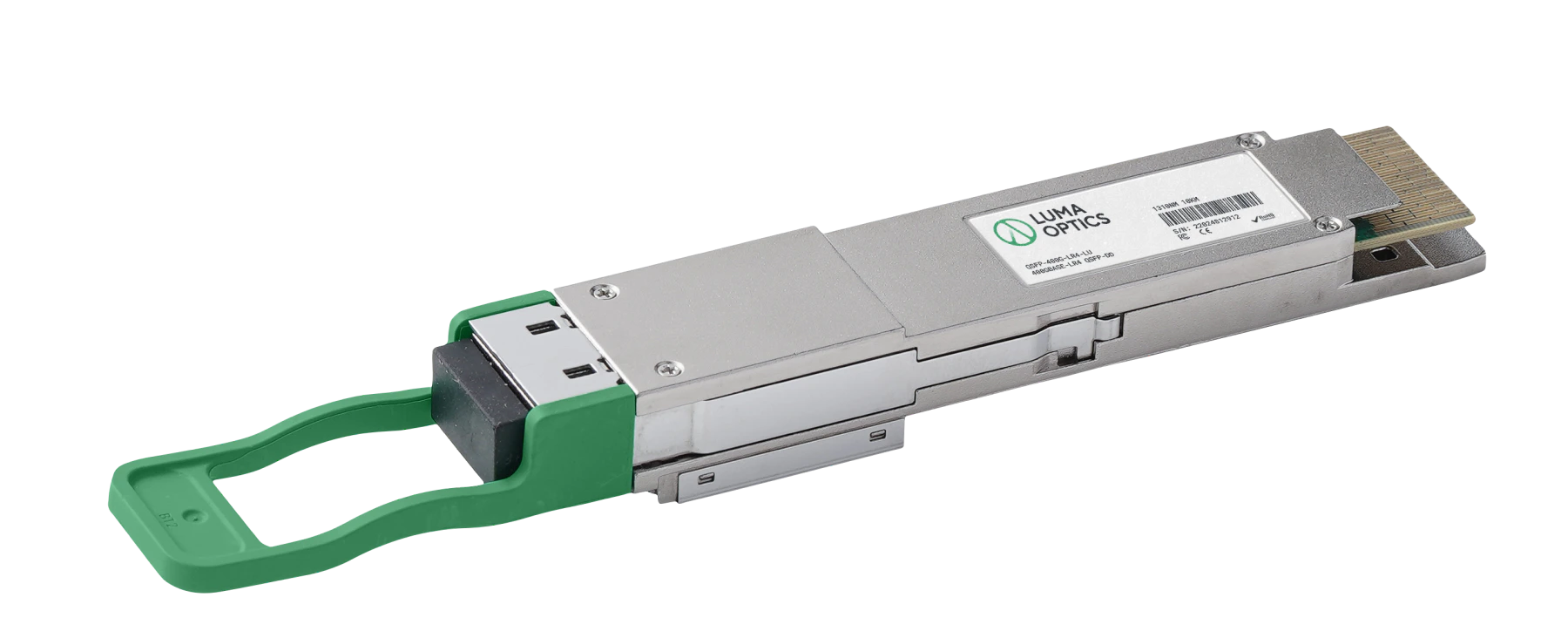

400GBASE-LR4-lu QSFP-DD PAM4
1310nm 10km | Optical Transceiver Module
Compliance:
| data rate | 400Gbps |
| Center wavelenght | 1310nm |
| Cable distance | 10km@SMF |
| power consumption | 8W |
| connector | LC |
| Transmitter Type | EML |
| Receiver Type | PIN |
| case temperature | 0 to 70°C (32 to 158°F) |
| modulation | 8x 50G PAM4 |
| Tx Power | -2.7~5.1dBm |
| Rx Power | -9~5.1dBm |
| protocol | QSFP-DD MSA, CMIS Rev4.0, OIF 56G PAM4,400G-LR4-10 MSA |
| media | SMF |
| Extinction Ration | 3.5dB |
| fec | NO |
| package | COB |
| Packaging Technology COB | |
| Vendor Name | Luma Optics |
| warranty | Lifetime |
| Typical application | Data Center 1 x 400G to 400G |
features
- Up to 10KM transmission distance
- Signaling rate per lane, 53.125GBd
- EML with TEC and PIN receiver
- Modulation format ,PAM4
- 400GAUI-8 electrical interface
- 2-wire interface for integrated Digital Diagnostic monitoring
- QSFP-DD MSA package with single LC connectors
- Hot pluggable
- Very low EMI and excellent ESD protection
- +3.3V power supply
- Power consumption less than 12W
- Operating case temperature: 0~70℃
